Settings

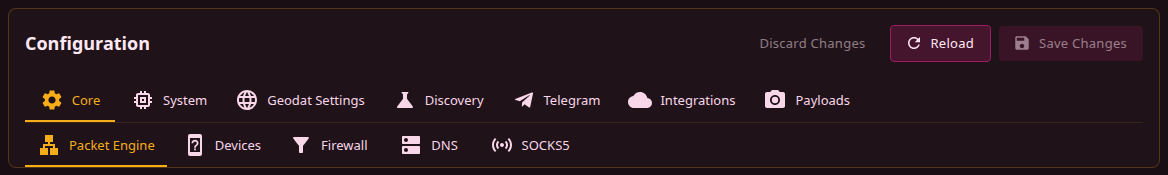

The settings page is split into tabs, and the Core and System tabs into sub-tabs.
- Core - how b4 handles traffic, on the sub-tabs Packet Engine (ingestion mode, IPv4 and IPv6, the queue, IP block detection), Devices (device filtering), Firewall (firewall rules, MSS clamping, NAT Masquerade, DSCP), DNS (DNS over TCP and timeouts) and SOCKS5 (the built-in SOCKS5 proxy)
- System - the service itself, on the sub-tabs Service (restart, System Info, interface language, time zone, memory limit, update mirrors, logging), Web Server (port, TLS, authentication, access from the internet) and Backup (backup and restore, configuration download, reset to defaults)
- Geodat Settings - sources, download and updates of the GeoSite and GeoIP databases
- Discovery - the timeouts and the trusted DNS server of Discovery, and the watchdog
- Telegram - the Telegram over WebSocket switch, the MTProto proxy and its secrets, the shared Telegram upstream and the WEB proxy
- Integrations - the IPinfo token, the AI assistant, the MCP server and the connection to the Community Hub
- Payloads - generation, upload and management of payloads for faking
Authentication and HTTPS of the web interface, and the Expose to internet switches of the web server, the SOCKS5 proxy and the listeners on the Telegram tab, are described under Security.
Saving and restarting
The buttons in the page header act on every tab at once. Save Changes writes the changes of every tab, Discard Changes drops the unsaved changes after a confirmation, and Reload loads the configuration from b4 again, which drops them as well.
While a change is unsaved, a Modified chip shows next to the Configuration title. A tab or sub-tab with unsaved changes shows a dot. On the sub-tabs of Core and System, a restart icon with the tooltip Applies after a restart takes the place of the dot while a field from the second column of the table has changed. While such a change is unsaved, the header shows Some changes require a B4 restart to take effect, and the message that confirms the save carries a Restart Service button.
| Sub-tab | Restart icon on a change to | Applies on save |
|---|---|---|
| Core, Packet Engine | Ingestion mode and the TUN settings, Enable IPv4 Support, Enable IPv6 Support, Queue Start Number, Worker Threads, Packet Mark | Capture Interfaces, Force IPv4 for matched domains, TCP Connection Packets Limit, UDP Connection Packets Limit, IP Block Detection |
| Core, Devices | Enable Device Filtering, Exclude Selected Devices (Blacklist), the selection in Available Devices | Vendor Lookup, device names, the MSS column, Manual Devices |
| Core, Firewall | Skip IPTables/NFTables Setup, Firewall Engine, Firewall Monitor Interval (seconds) | Global MSS Clamping, NAT Masquerade, DSCP |
| Core, DNS | - | Every field |
| Core, SOCKS5 | - | Every field |
| System, Service | Instant Flush, Syslog, Memory Limit | Language, Time Zone, Update mirrors, Log Level, Log Directory |
| System, Web Server | Port, Bind Address, TLS Certificate, TLS Key | Username, Password, Expose to internet |
While the packet engine is not running, a saved firewall change on these sub-tabs takes effect when b4 restarts.
The Backup sub-tab has buttons only, no fields.
The Telegram tab applies its changes on save. b4 restarts the MTProto proxy itself when a field that needs it changes.
The Discovery tab applies its changes on save as well, and a Discovery run already in progress keeps the settings it started with.
